RAFT: Overview

RAFT guarantees consensus by ensuring all non-faulty servers apply the same operations in the same order.

State-based replication:

• Instead of copying entire state snapshots frequently, RAFT applies incremental updates:
• Each update is stored in the log as a (key, value) operation.
• All servers apply updates in the same sequence → consistency.

Problem: Split Brain

If a network partition occurs, replicas can diverge (two groups think they have leaders).
Solution: Majority voting → only the group with a majority of servers can elect a leader. That’s why RAFT typically uses an odd number of servers (3, 5, 7).

Client interactions:

• Clients send operations (e.g., PUT/GET) to the leader.
• The leader appends the operation to its log, replicates it, and commits when a majority acknowledges.
• Operations must be idempotent (safe to reapply without changing meaning), since retries may occur.

Logs:

• Store both tentative (uncommitted) and committed operations.
• Persistent on disk so they survive crashes.
• May temporarily differ between servers, but RAFT ensures they eventually converge.

    <p><strong>Example:</strong></p>

(latest message in log is at the RHS).

Terms:

• Time is divided into terms, numbered consecutively.
• Each term begins with an election.
• At most one leader per term.
• If no leader is elected, a new election (new term) begins.
• Different from Zookeeper, where leaders send heartbeats constantly to prevent elections.

RAFT Guarantees:

• Election Safety → At most one leader elected per term.
• Leader Append Only → Leaders never delete/overwrite logs; they only append entries.
• Log Matching → If two logs agree at an index, all prior entries must be identical.
• Leader Completeness → If a log entry is committed, it will appear in future leaders’ logs.
• State Machine Safety → A given index will never be assigned different commands on different servers.

Snapshots:

• Logs can grow indefinitely → snapshots periodically save the full state at a point in time.
• Old logs before snapshot can be discarded.
• Followers can create snapshots independently.
• Helps lagging followers catch up more efficiently (instead of replaying long logs).
• Leaders can send the latest snapshot to very out-of-date followers.

RAFT: Implementation

RAFT is a consensus algorithm designed to ensure fault tolerance and strong consistency in distributed systems. Because RAFT is state-based, each server maintains variables that define its state. Some of these must survive crashes (persistent state), while others are only needed while the server is running (volatile state).

Persistent state (stored on stable storage, updated before responding):

• currentTerm → the latest term the server knows about (starts at 0).
• votedFor → candidate ID that this server voted for in the current term (or null).
• log[] → sequence of log entries, each storing a command for the state machine and the term when it was received.

Volatile state (on all servers):

• commitIndex → index of highest log entry known to be committed (safely replicated on a majority).
• lastApplied → index of highest log entry actually applied to the state machine (important if snapshots exist).

Volatile state (on leaders only):

• nextIndex[] → for each follower, index of the next log entry the leader will try to send.
• matchIndex[] → for each follower, index of the highest log entry known to be replicated there.

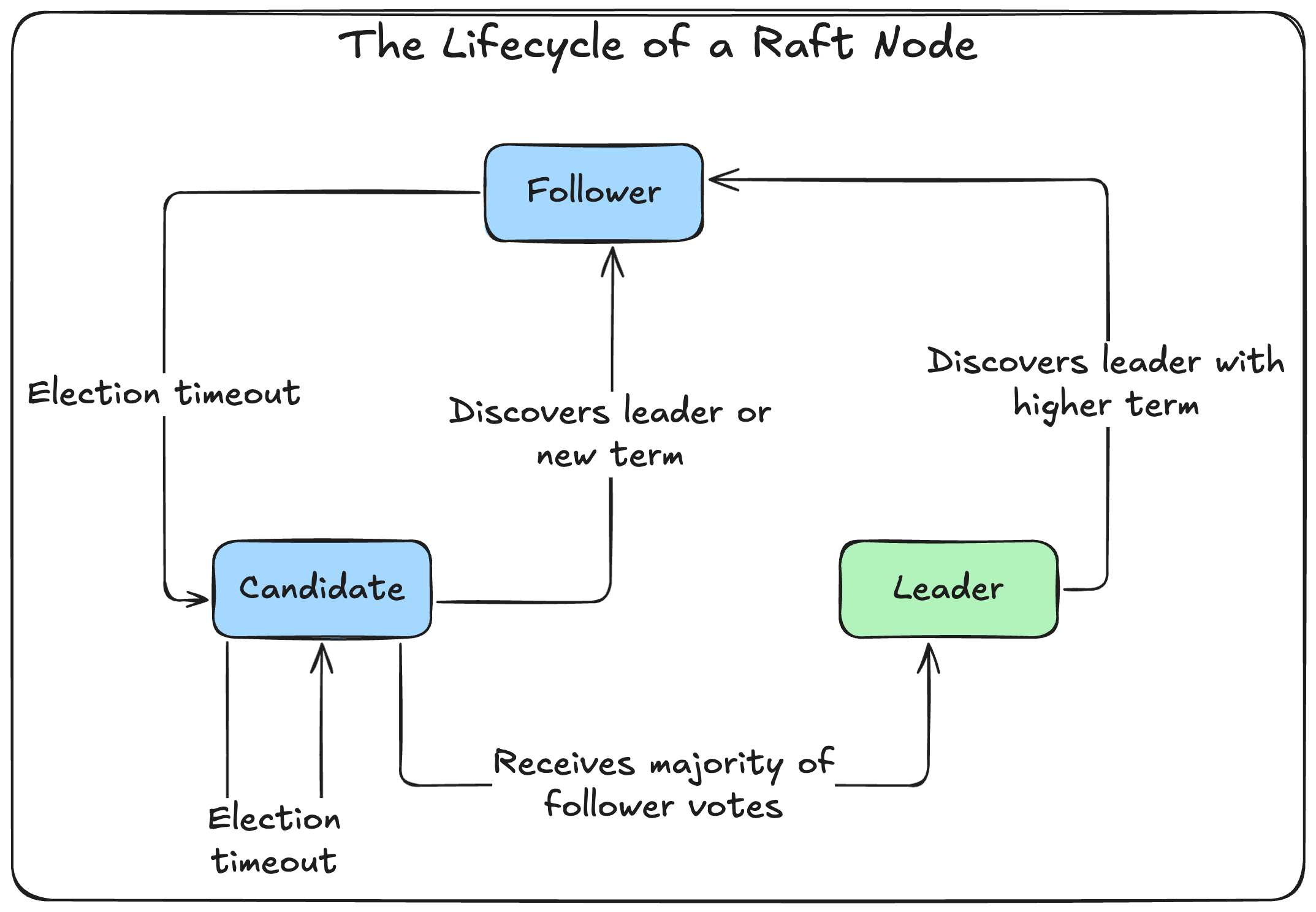

Elections & Timeouts

Each server starts as a follower. If it doesn’t hear from a leader within a randomized timeout, it becomes a candidate, increments its term, and starts an election. Randomization avoids “split votes,” where multiple candidates tie.

Remote Procedure Calls (RPCs):

RAFT uses only two RPC types for communication:

• RequestVote RPC → used during elections.
• AppendEntries RPC → used by leaders to replicate log entries and send heartbeats.

RequestVote RPC:

Candidate asks other servers for votes by sending (term, candidateID, lastLogIndex, lastLogTerm).

Each server checks:

• Reject if candidate’s term < currentTerm.
• Grant vote if they haven’t voted yet this term, and candidate’s log is at least as up-to-date as their own.

Candidate becomes leader if it receives a majority of votes. Then it begins sending heartbeats to establish authority.

AppendEntries RPC:

Sent by the leader to replicate logs or as heartbeat messages.

Parameters: (term, leaderID, prevLogIndex, prevLogTerm, entries[], leaderCommit).

Each follower checks:

• Reject if term < currentTerm (outdated leader).
• Reject if follower’s log doesn’t contain an entry at prevLogIndex with term = prevLogTerm.
• Otherwise, append new entries (overwriting conflicting ones).
• If leader’s commit index > follower’s, update follower’s commit index.

This ensures log consistency across servers.
